Improving the lines of attack

.

out compartment located in the bed of attack, this makes hoses are previously connected.

L idea of \u200b\u200bputting a line of "fast attack" is to arrive as quickly as possible with sufficient capacity to crush 80% of our fires with a length that allows to reach the back of a house, that is, must have 3 or 4 hoses of 15 meters (45 to 60 m in length) with hoses of 52 mm in diameter to ensure the flow rate of approximately 1,000-python LPM to 7 bar or less depending the type of python.

This is an undisputed copy lines pre-connected to American bombs, but a lot of our bombs at national level, do not bring out in the same compartment hose, ie not are pre-connected.

This is a problem, because the fast break is not connected nothing, forcing tail being switched to a pump outlet . The attack must be the least cumbersome possible and should facilitate the deployment of hoses by one man.

.
addition our copies are made in compartments very young, which leave no choice to make a bed with many folds perpendicular very short impossible to load several meters of hose over the shoulder (this forces the pitonero practically carry only the end of the spigot). A bed longer allows pitonero load on his shoulder, moving through corridors and stairways to the second floor of the structure stricken.

Error and Solution.

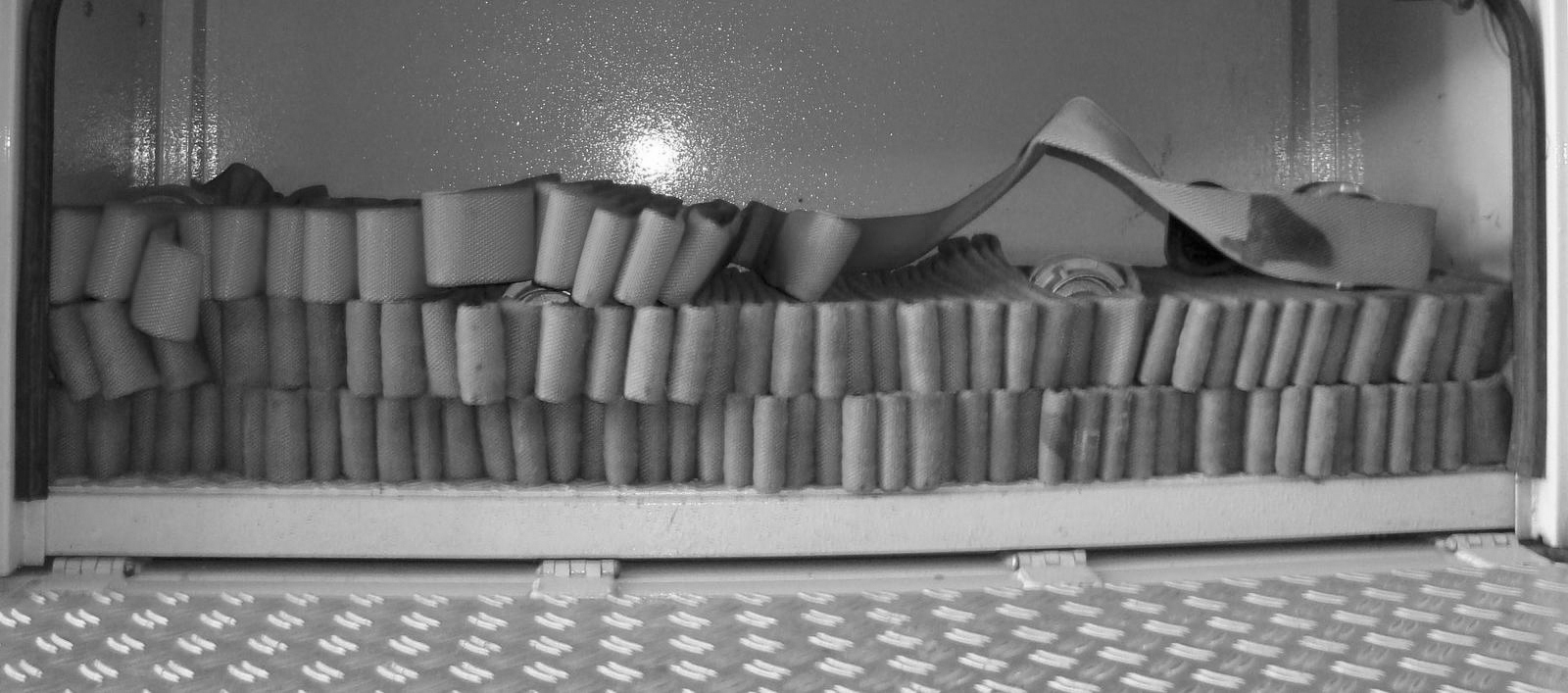

the queue is usually hidden in the bottom of the compartment with many folds perpendicular with respect to the direction pump.

The solution (easy and economic ) is to leave the queue always see an extra section to reach the exit of the pump.

fast attack The idea is to make it easy , comfortable and of course quick to deploy only a firefighter, without the help of others thought of those days when the number of the crew is very low.

Once connected 'attack' located in parallel to the pump, pitonero only have to worry about and move to rectify to the fire.

Funky Black, Silver And Green Fabric

Sirens greet the 33 trapped miners. Direct Python

Dragon Ball Buma In The Shower

"Obsolete?," Python exercises and skills?, "Passé? NO, the direct pythons, as they are called on CBS, (also known as "python tube" or "needle"), are far from being obsolete.

.

Why? Because they are a tube for removing foreign bodies that travel through the hose, especially today, a city rich in high-rise buildings. Modern buildings have a dry network, which theoretically Fire helps to drop water on the fire quickly.

.

Unfortunately experience tells us otherwise ...

Network dry, rigid pipe designed to carry water, though it also draws our papers, scale, sediment that can clog or reduce the discharge into a python Fog, is often more reliable to work with a solid running python, as live python, a sophisticated python Fog.

.

But you have a solid stream spout nozzle approx. 25 mm in diameter, similar to that of American firefighters, no problem! despised the German python used almost only in competitions, now may be a worthy ally when working with the dry network.

Removing the diffuser jet (half fog / direct) to clear the domestic product and also become the mouthpiece to extend flow capacity may grant a work buenisimo fires in height from 100 bpm to 400 bpm @ 5 bar with nozzles 9 to 16 mm in diameter.

.

Who said that all our modern fire-fighting tools are too expensive?

stacked nozzle 17 and 24 mm.

direct German Python nozzle machined from 16 mm to give about 400 lpm to 5 bar with the possibility of eliminating waste and debris from the dry network.

Note the poor flow of the python Fog machine connected to the network dry on the fifth floor of a building, sent 11 bar pump pressure. When removing the spout rubbish and stones was found stuck on the grid inside the python.

Can Oral Chlamydia Fertility

This fire nor forget

How Do I Set My Honeywell Radiator Thermostat

Guess Coat Buttons By Manufacture

38 Special Carozzi leverage

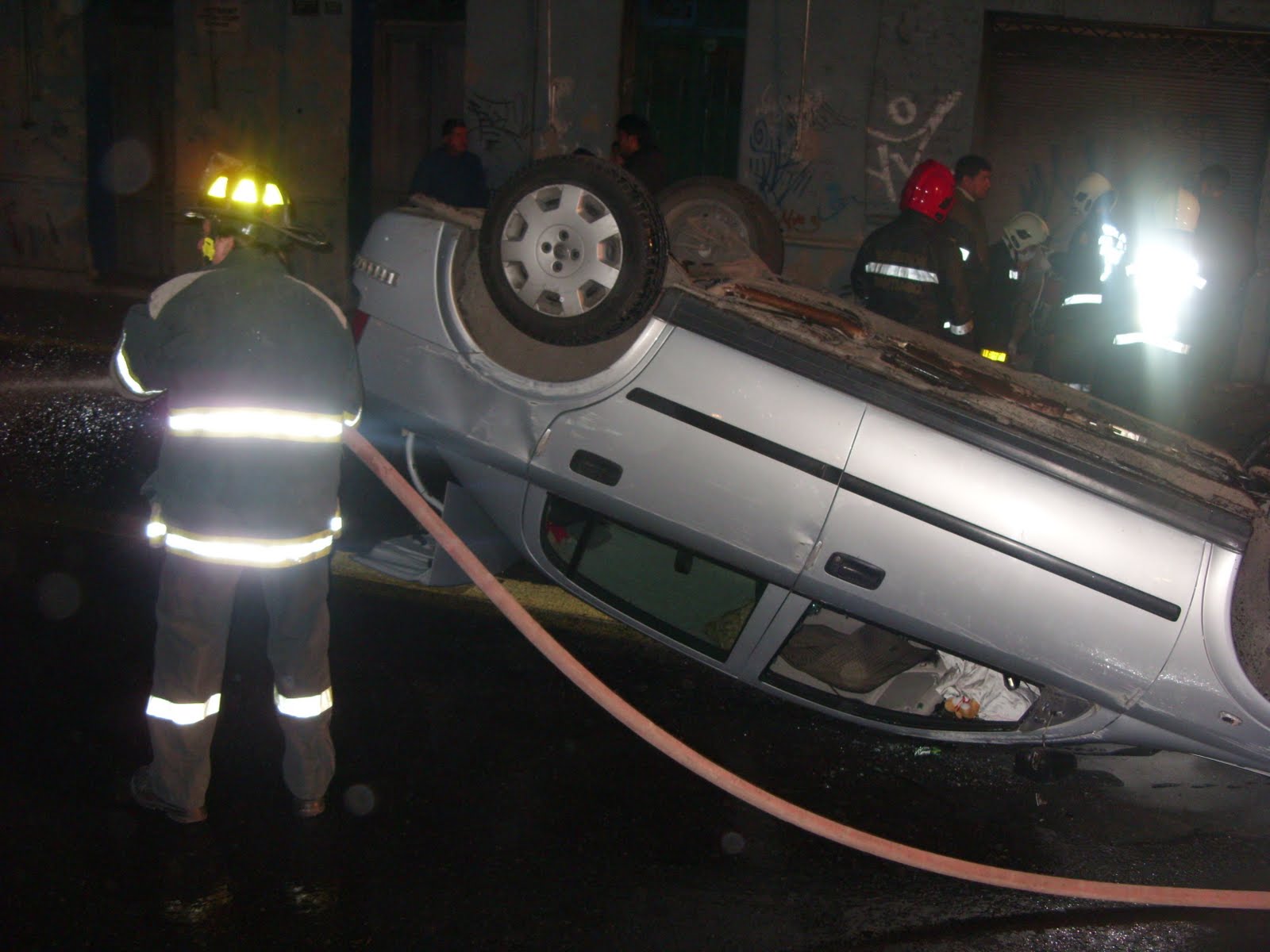

L as small diameter hoses are very light and comfortable to handle, no need practically pitonero assistant or tape to minimize the reaction in the python. They are very useful in threats of fire houses, fire vehicles, grazing, are very common as well as safety lines rescue vehicle , etc.

The Santiago Fire Department for these services using hoses of 38 mm and for us it is important to store them such that their deployment is as quick and convenient as possible.

A special way to keep the hoses of 38 mm is in French roll, but in this case are two strips accommodated as a , ie a roll of two hoses. This is the roll 38 special!.

.

Why call 38 Special?

.

Due to an end quite handy, it is easy to remember and differentiate other rolls of 38 mm, these are simple and / or French is available at the pump.

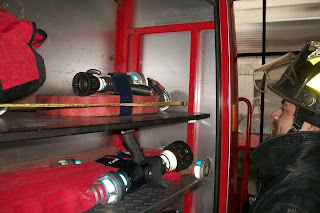

The 38 special roll is located in the shade No. 2 on the pump.

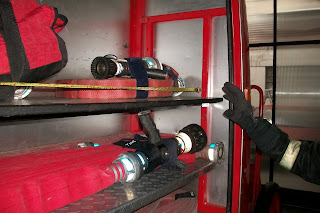

is to reach approx . 1.80 m

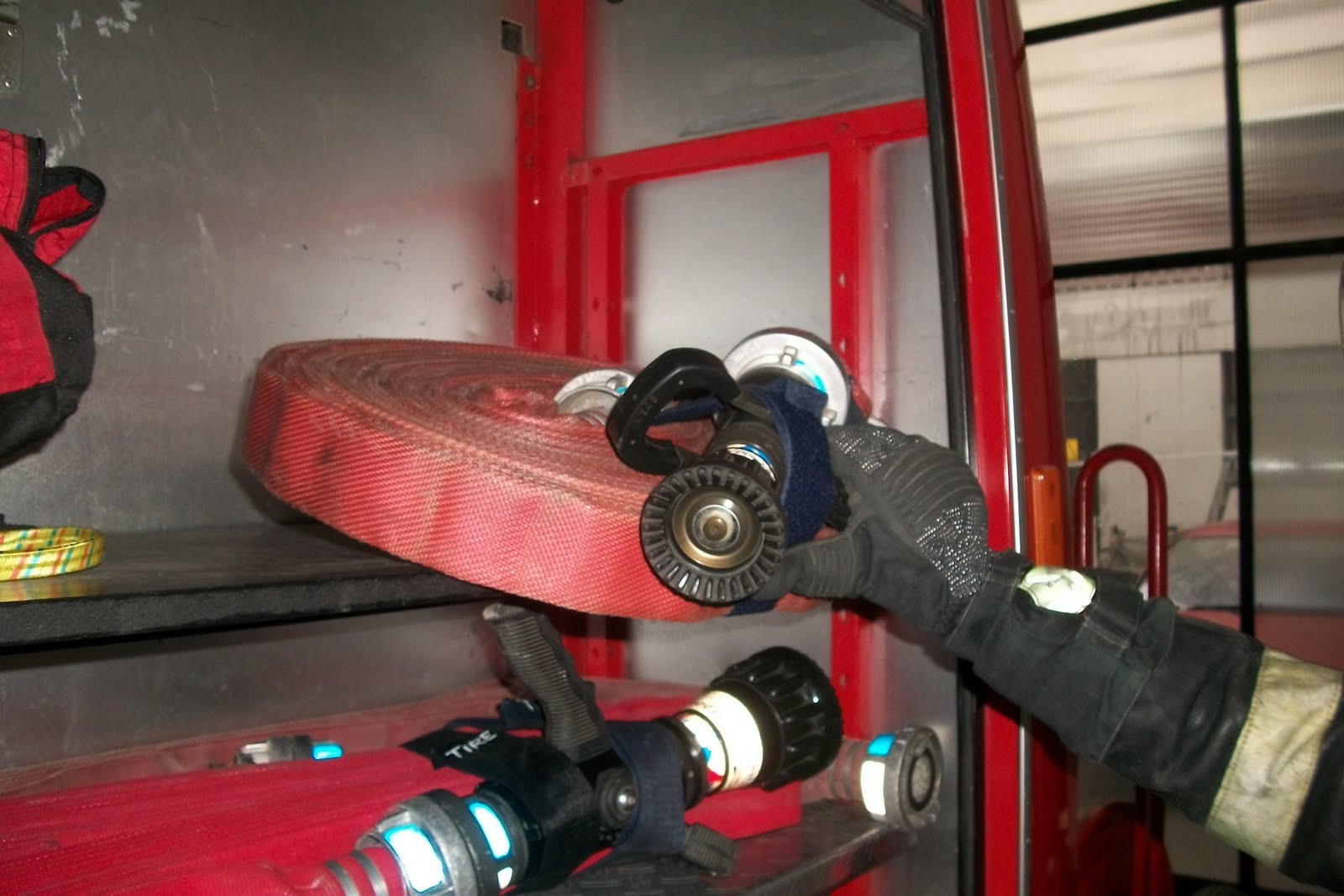

can be removed from the tray by pulling the handle of the spigot.

Care must be taken to remove, using both hands to avoid bruising on his face.

transport is very comfortable holding it from the handle of the spigot.

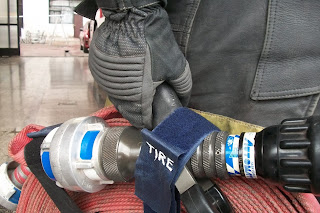

has two Velcro they keep the two tubes together with the python, as a bundle of hoses (hose pack).

can be transported as a simple roll to deploy it where the user wants.

hoses are commonly used 38 mm in small fires, vehicle rescues , grasslands, etc. Special with 38 deployment is faster and less cumbersome than having each roll separately with the python as it was once used offline.
